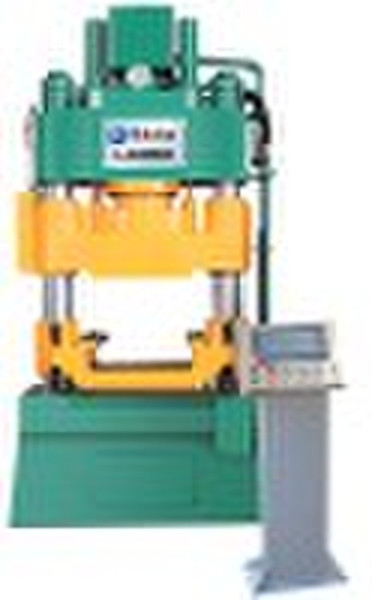

Hydraulic Tile Press Type TL-YZJ-260

Major Technical Parameters of Hydraulic Tile Press Type TL-YZJ-260 Main Body Dimension L x W x H 1,600x750x3,055 (mm) Working Interval/Min. 7 (times/min) Main Cylinder Max. Pressing Force 2,600 (kn) Main Cylinder Max. Pressure 37 (MPA) Lower Cylinder Ejecting Force 110 (kn) Main Cylinder Max. Stroke 260 (mm) Lower Cylinder Ejecting Stroke 120 (mm) Main Power 22 (kw) Net Weight ≈ 9000 (kg) Standard Set Mechanical Jacks System: Four-beam & two-pillar frame, main cylinder, pneumatic components, two-way and straight-line guider, hydraulic-driving system, and powder-feeding system etc. Electric Auto-Control System: Japanese MITSUBISHI PLC coding component, L-size color liquid crystal display and man-machine control panel etc. Features of Type TL-YZJ-260 The Press Type TL-YZJ-260 is special designed and made of leading technology to produce special ceramic tiles, like corner tiles, ultra-thick or special shape ceramics etc. by adopting powder materials compacting pressed-forming process. Through which the required anger or thickness or shape of tiles are achieved, which are smooth in surface, precise in dimensions with high inner density and strength. Since the hydraulic drove powder-feeding system is unique designed of easy-to-adjust but notable low costs compared with other complex and expensive one, the remarkable features of the TL-YZJ-260 Press are not only its guaranteed performance but also its high performance-price ratio dealing with varied technical parameters of different special tiles to be made like the tiles anger, tiles thick, pressing-force, or feeding-conditions etc. It is truly the best ideal equipment for special ceramics.
